Highlights
All-in-one video intercom, access control, and security camera functionality
Sharp audio with four microphones, DSP, and 90dB speaker
Flexible installation options for any environment
Built-in card reader supporting multiple credential technologies
High-definition 5MP video, Wide Dynamic Range, and IR for clear visuals day and night
Resources
Verkada TD53 Install Guide (PDF) (not available)

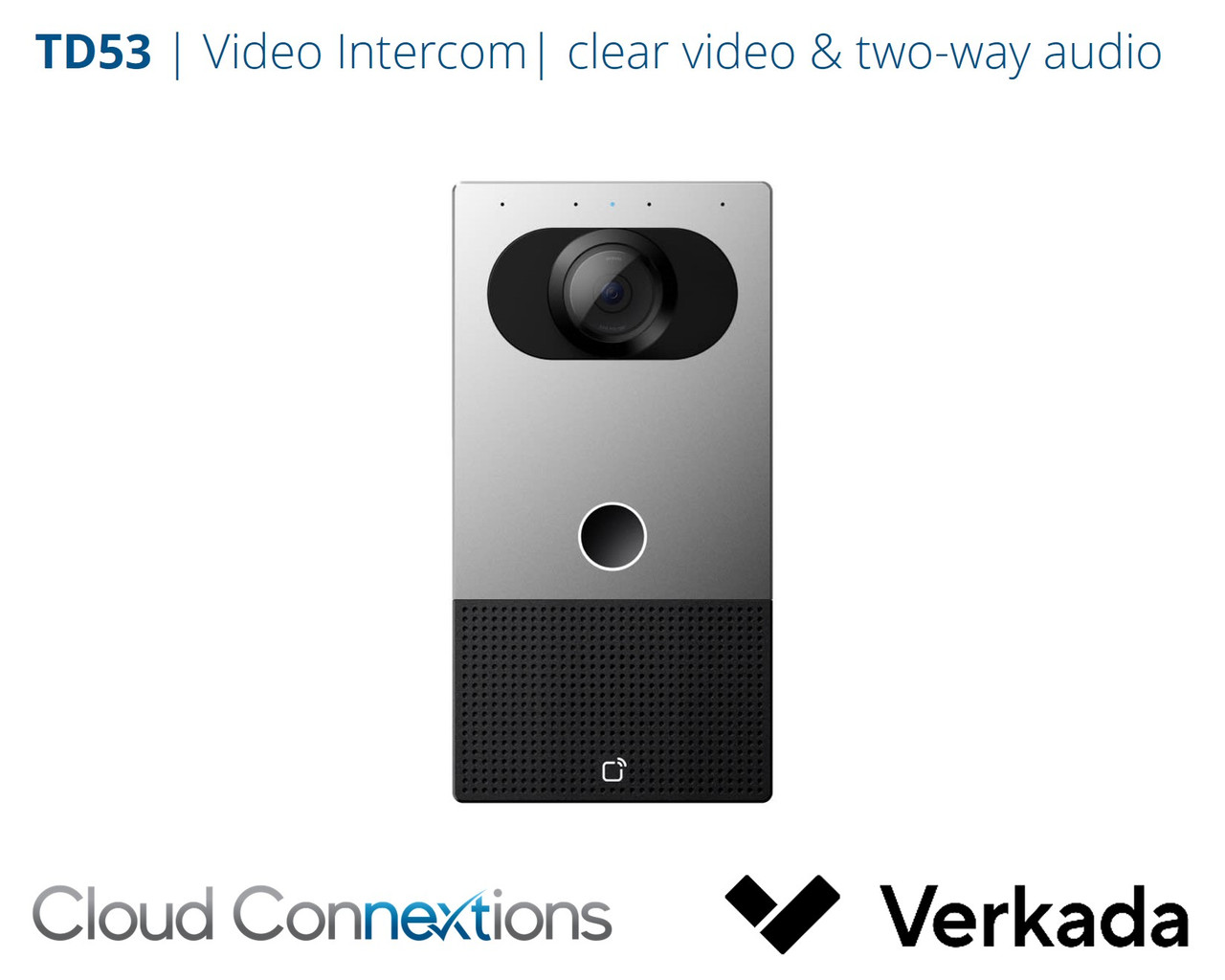

Verkada TD53 Video Intercom – Multifunctional Entry Security for All Environments
The Verkada TD53 Video Intercom is a versatile and multifunctional device, featuring video intercom, access control, and security camera capabilities all in one sleek, durable form factor. The TD53 delivers excellent call quality with sharp audio across diverse environments, allowing clear visuals and audible conversations even in highly trafficked areas. With native and third-party integration options for access control systems, the TD53 enhances entry security while simplifying the visitor experience.
The built-in card reader offers support for multiple credential types, including high-frequency, low-frequency, NFC, and BLE, providing flexibility for secure access. The 5 MP camera captures crisp, clear video in all lighting conditions, and Wide Dynamic Range (WDR) technology ensures optimal image quality even in challenging light environments. The TD53 is ideal for outdoor use, with an IK08 impact rating and an IP66 weather rating, ensuring durability in harsh conditions.
Combined Video Intercom, Access Control, and Security Camera
The TD53 brings together video intercom, access control, and security camera functionalities to simplify and secure entry experiences. Its advanced features help streamline operations while providing top-notch visibility and safety for all entryways.
Superior Audio Quality with Noise Suppression
With four microphones, a 90dB speaker, and a digital signal processor (DSP), the TD53 delivers superior noise suppression and echo cancellation for clear and intelligible conversations. Even in high-traffic areas, the TD53 ensures communication remains seamless and effective.
Flexible Installation Options
The TD53 comes with a variety of mounting options and accessories to support diverse installation requirements, including flush mount, surface mount, conduit, and angle mounts. This versatility allows it to adapt to almost any surface or location.
High-Definition Video with Wide Dynamic Range
The 5 MP camera, equipped with Wide Dynamic Range and IR LEDs, captures clear, detailed images day and night. The 130° field of view provides expansive coverage, ensuring that every interaction is recorded with precision.
Built to Withstand Harsh Environments
Designed for durability, the TD53 features IK08 impact resistance and an IP66 weather rating, making it suitable for both indoor and outdoor deployments. The removable lens cover and tamper detection capabilities add an extra layer of security, ensuring reliable operation in demanding conditions.
Product Specifications
- Image Sensor: 1/2.8” Progressive CMOS
- Image Resolution: 5MP (2688 x 1944)
- Onboard Storage: 512GB
- Focal Length: 2.12mm, Fixed Lens
- Iris: Fixed, Aperture F2.1
- Field of View: Horizontal 130°, Vertical 100°, Diagonal 160°
- IR Range: 15m / 50ft in low light
- Audio: 4 omnidirectional MEMS microphones, 5W speaker, 90dB SPL at 1m
- Audio Streaming: Two-way, full duplex with echo cancellation, noise suppression, and adaptive beamforming
- Connectivity: Ethernet 10/100/1000Mbps RJ-45, PoE
- Inputs / Outputs: 3x dry inputs, 2x dry relays, 1x RS-485 port
- Dimensions: 229mm (H) x 118mm (W) x 33mm (D)
- Weight: 1.0kg / 2.2lb
- Tamper Detection: Yes
- Operating Power: IEEE 802.3af PoE; IEEE 802.3at PoE+ (extended temperature range)
- Operating Temperature: -40°C - 50°C / -40°F - 122°F
- Supported Credential Technologies: Low Frequency (125KHz), High Frequency (13.56MHz), Mobile NFC (13.56MHz), Bluetooth Low Energy (2.4GHz)
- Certifications: FCC, ICES, IK08 impact rated, IP66 weather rated
What's in the Box
- Verkada TD53 Video Intercom
- Flush mount plate
- Surface mount box
- T10 screwdriver
- Mounting hardware kit
- Grommet punch
