Verkada | CY53-E Dual-Head Multisensor Outdoor Camera | 512GB, Max 30 Days Retention

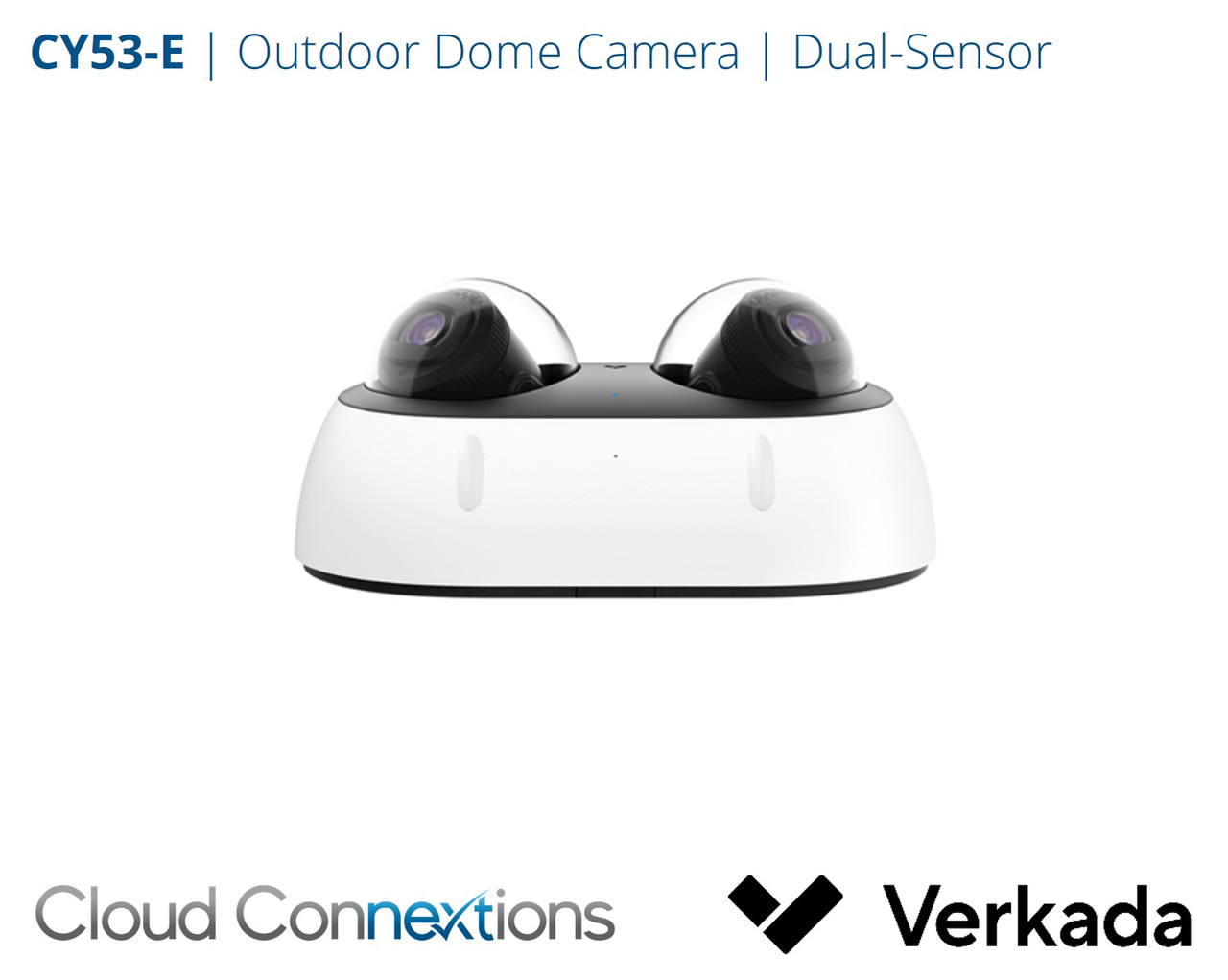

Verkada CY53-E Dual-Head Multisensor Outdoor Camera – High-Efficiency Bidirectional Surveillance

The Verkada CY53-E is a purpose-built dual-head multisensor designed to provide comprehensive coverage of hallways, warehouse aisles, and building perimeters from a single install point. By housing two independent 5MP sensors in one rugged unit, the CY53-E delivers 10MP of total resolution while requiring only one PoE cable and one IP address. Each sensor head features a motorized 2.55x optical zoom lens, allowing for precise framing of two different fields of view—such as both directions of a long corridor—with minimal blind spots. Powered by the Ambarella CV72 processor, the CY53-E supports advanced edge-based AI, including occupancy trends and trajectory analysis, making it a cost-effective alternative to deploying multiple single-sensor cameras.

Bidirectional 10MP Coverage: Two individually adjustable 5MP sensors provide expansive views in opposite directions, perfect for entry/exit points and narrow thoroughfares.

Intelligent AI-Powered Edge Analytics: Leverage high-speed person and vehicle detection, loitering alerts, and face search capabilities processed directly on the camera hardware.

Built for the Elements: Featuring an IP67 weather rating and IK10 vandal resistance, the CY53-E is engineered to perform in extreme outdoor environments and high-traffic areas.

Simplified Installation: The 2026 chassis includes a built-in bubble level, alignment presets, and a latch-based cable gland to significantly reduce time on a ladder.

Product Specifications

Resolution: 2x 5MP (2592 x 1944)

Lens Type: Varifocal; motorized 2.55x optical zoom

Focal Length: 3.18mm – 8.12mm

Field of View (after LDC): Horizontal: 93° – 38°, Vertical: 72° – 29°, Diagonal: 114° – 47°

IR Range: 30m (98ft)

Audio: Integrated microphone with physical and digital mute switches

Storage Options: 512GB (Standard 30-Day), 1TB, 2TB

Power Input: PoE+ (IEEE 802.3at Type 2)

Operating Temperature: -40°F to 122°F (-40°C to 50°C)

Weight: 70.5 oz (camera), 14.1 oz (mount plate)

Dimensions: 253.0mm (L) x 143.0mm (W) x 115.0mm (H)

What's in the Box

• Verkada CY53-E Dual-Head Multisensor Camera
• Mount plate with built-in bubble level
• T10 security Torx screwdriver
• 4x Wall mount screws and 4x wall anchors
• Conduit adapter and large cable gland
• Desiccant pack
